My Personal Swim Drills

[Manuel Extreme]

Swim Drills – SuuntoPlus App Documentation

https://github.com/nousmc/Swim-Drills

Overview

Swim Drills is a SuuntoPlus application designed to track swimming drills (e.g. kick-only sets) where automatic distance detection is unreliable.

The app enables manual distance tracking while preserving native workout data from the watch.

---

Key Principles

• Manual control over drill distance
• Separation between native swim distance and drill distance
• Real-time visualization of combined total distance
• Minimal interaction during effort phases

---

Distance Model

The app manages three distance values:

• Native Distance

  • Source: watch (Activity/Current/Distance)
  • Automatically recorded
  • Cannot be modified

• Drill Distance

  • Manually calculated:

  drillDistance = poolLength × lapCount


  • Accumulated across the session

• Combined Distance

  combinedDistance = nativeDistance + drillDistance


  • Used as the effective total distance
  • Displayed during the workout and in summary outputs

Note: Combined distance does NOT replace the official workout distance.

---

App Workflow

1. Pool Setup (initial only)

User defines pool length.

Controls

• UP press → +25 m
• UP long press → −25 m (min 25 m)
• LAP → start first drill

Behavior

• Executed only once at the beginning
• Value persists for the entire session

---

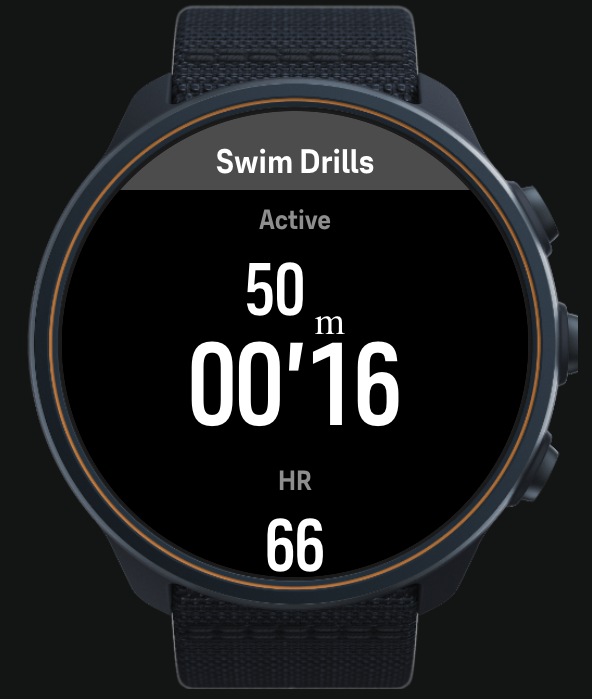

2. Swim Phase

Tracks active drill.

Display

• Drills (m) → cumulative manual drill distance
• Timer → elapsed swim time
• HR → heart rate

Controls

• LAP → end drill and start rest

---

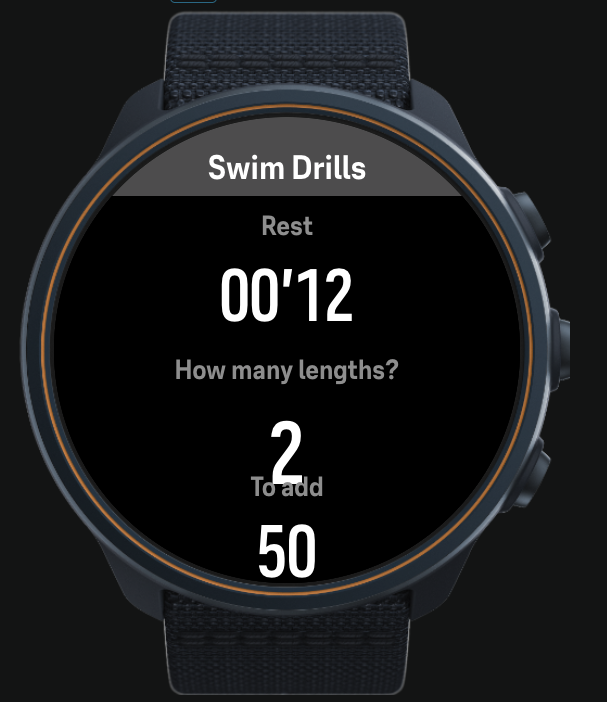

3. Rest + Input Phase (REST_EDIT)

Rest starts immediately.

User inputs number of completed lengths.

Display

• Rest timer (running)
• Number of lengths
• Distance to add

Controls

• UP press → +1 length
• UP long press → −1 length (min 1)
• NEXT → confirm

Result

drillDistance += lapCount × poolLength

---

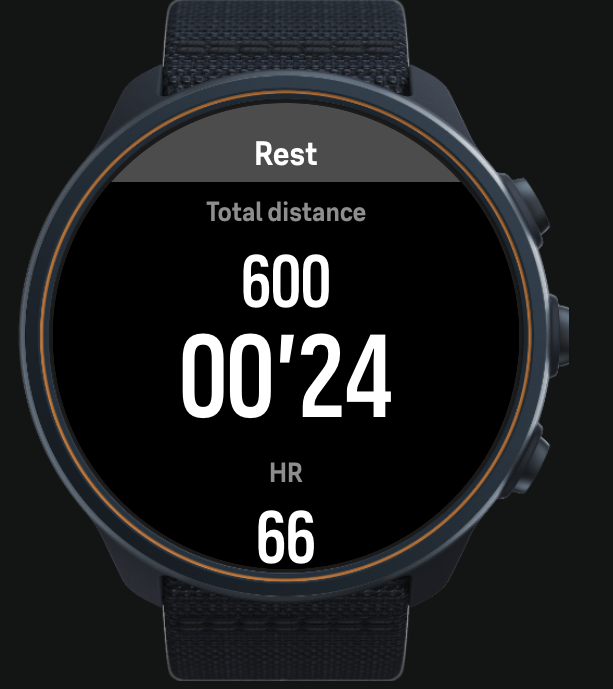

4. Rest View (REST_VIEW)

Passive recovery phase.

Display

• Total (m) → combined distance
• Rest timer
• HR

Controls

• LAP → start next drill

---

Timing Logic

Two timers are managed:

Swim Timer

• Starts on entering SWIM
• Stops on LAP

Rest Timer

• Starts immediately after swim ends
• Continues through:
  • REST_EDIT
  • REST_VIEW
• Resets on next drill start

---

Button Mapping

Button	Action
LAP (down)	Start / stop drill
UP press	Increment value
UP long press	Decrement value
NEXT	Confirm input

---

UI Structure

Swim View

• Top: Drills distance
• Center: Timer
• Bottom: HR

Rest View

• Top: Total distance (combined)
• Center: Rest timer
• Bottom: HR

---

Summary Outputs

At the end of the activity, the app provides:

• Total → combined distance
• Drills → manual drill distance
• Swim → native watch distance

These values appear as SuuntoPlus custom summary fields.

---

Limitations

• Cannot modify official workout distance
• Combined distance is not exported as primary distance
• Manual input required for each drill
• No automatic lap detection
• No per-interval history

---

Recommended Use Cases

• Kick-only sets
• Technique drills
• Mixed swim sessions
• Structured workouts with manual control

---

Practical Recommendation

Use Combined Distance as the primary metric during training.

The official workout distance should be considered incomplete when drills are involved.
